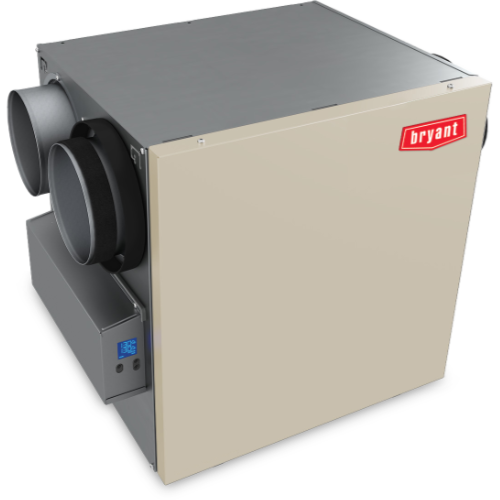

Bryant HRVXXSHA Ventilator

Keep Heating Efficiently and Bring in Fresh Air Without Opening the Windows

This model delivers enhanced, refreshing ventilation for a smaller home with a horizontal indoor furnace or fan coil. Operating on the same principals as all of our HRVs, it transfers indoor heat energy to the incoming air to provide an infusion of freshness on extremely cold days. It’s a great way to let the fresh air in without letting your energy dollars out.

• Air Flow: Up to 160 cubic feet per minute
• Sensible Recovery Energy: Up to 75% SRE

Features

• Brings in fresh air and expels stale, sometimes unhealthy air
• High-efficiency heat recovery core pre-conditions incoming air to minimize heat energy loss
• Prefilters particulates from incoming air and outgoing air to protect core
• Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
• Capable of intermittent- or continuous operation depending on control used
• Automatically defrosts when outdoor temperatures are below 23°F
• Designed for quiet operation
• 10-year parts limited warranty upon timely registration

Specifications

Efficiency

• Sensible Recovery Energy Up to 75% SRE

Performance

• Maximum Airflow Up to 160 cubic feet per minute
• Sound Quiet operation

Conveniences

• Filter Change Easy access hinged door for filter cleaning and core cleaning

Technology

• Core Polypropylene, crossflow designed core
• Core Protection Incoming and outgoing air is prefiltered
• Compatible Controls Evolution^® or separate ventilator control

Installation

• Placement Wall or ceiling mounted
• Venting Horizontal
• Electrical 115V

Aesthetics

• Cabinet Taupe color on metal matches Bryant furnace and fan coils
• Dimensions 19.125″H x 23.5″W x 16.125″D
