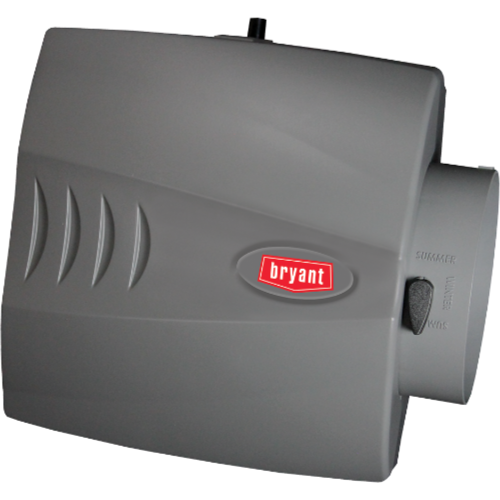

Bryant HUMCRLBP Humidifier

Bryant HUMCRLBP Humidifier.

Bypass Style Humidifiers Help Keep You Breathing Easier All Winter Long

The Bryant® Preferred series bypass humidifier works as a value-add to your heating system, relying on the furnace or fan coil blower to deliver up to 17 gallons of moisture vapor throughout your home per day. It improves your whole-home comfort by reducing the effects of dry, indoor air, including static, sore throats, dry skin and sinuses.

  • Water Vapor Output: 17 gal./day
  • Type: Bypass

Features

  • Furnace or fan coil dependent dispersal
  • Solenoid valve and water distribution system
  • Large or small capacity models available
  • Treated aluminum or water-saving paper evaporator pad models available
  • Front-facing, easy-access door
  • Nearly silent operation
  • Use with any type of cooling system
  • 10-year parts limited warranty upon timely registration

Specifications

Performance

  • Capacity 17 gallons per day
  • Sound Nearly silent

Technology

  • Dispersal Uses blower from furnace or fan coil
  • Damper Built-in bypass
  • Evaporator Pad Treated, expanded aluminum
  • Compatible controls Evolution® control, Preferred™ Thermidistat™ or separate humidifier control

Installation

  • Installation Can be mounted onto units installed in upflow, downflow or horizontal positions
  • Electrical 24V powered by furnace or fan coil

Aesthetics

  • Outer casing Taupe color on UV-resistant thermoplastic matches Bryant furnace and fan coils
  • Dimensions 15.5″H x 14″W x 10.25″D
